- 8× 10/100 Mbps RJ45 ports
- 4× PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required

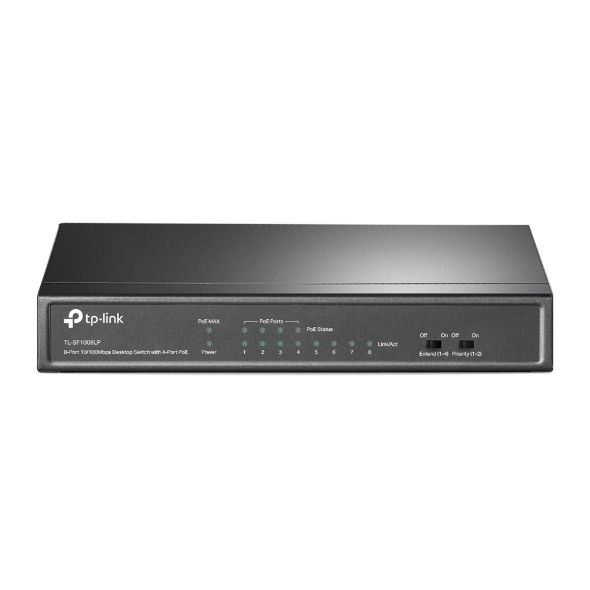

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Giao diện | • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX |
| Mạng Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Số lượng quạt | Fanless |
| Khóa bảo mật vật lý | Yes |
| Bộ cấp nguồn bên ngoài (EU) | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Tốc độ truyền tải gói | 1.1904 Mpps |
| Cổng PoE (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W |
| Bảng địa chỉ Mac | 2K |
| Khung Jumbo | 2 KB |
| Công suất chuyển | 1.6 Gbps |
| Kích thước ( R x D x C ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Tiêu thụ điện tối đa | • 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max Heat Dissipation | • 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) |
| TÍNH NĂNG PHẦN MỀM | |
|---|---|
| Transmission Method | Store-And-Forward |
| Tính năng nâng cao | • Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| KHÁC | |
|---|---|
| Chứng chỉ | FCC, CE, RoHS |
| Sản phẩm bao gồm | • TL-SF1008LP • Power Adapter • Installation Guide |
| Môi trường | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
