- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
What This Product Does

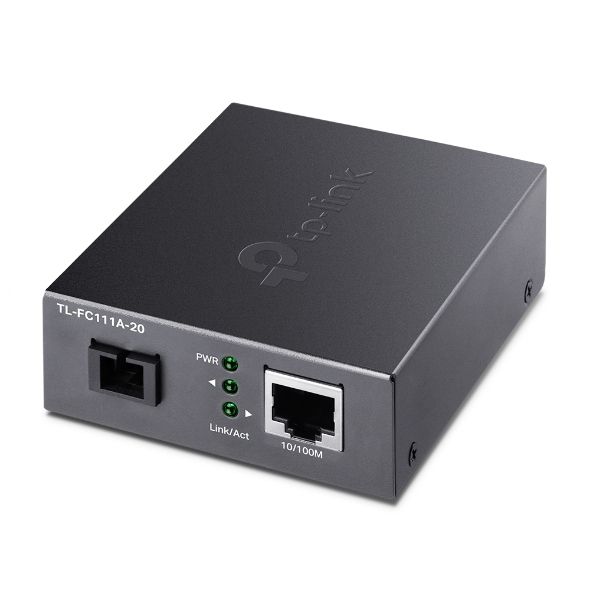

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter TL-FC111B-20 is one of the products that can cooperate with TL-FC111A-20.
Chuẩn và Giao thức | IEEE802.3, IEEE802.3i, IEEE802.3u |
---|
ENVIRONMENT |
---|
Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
---|
Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
---|
Operating Humidity | 10% to 90% RH non-condensing |
---|
Storage Humidity | 5% to 90% RH non-condensing |
---|
TÍNH NĂNG PHẦN CỨNG |
---|
Mạng Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
---|
Bộ cấp nguồn | External Power Adapter: 5 V/0.6 A |
---|
LED | PWR, Link/Act |
---|
Kích thước ( R x D x C ) | 94.5*73*27 mm |
---|
Wave Length | 1550 nm TX, 1310 nm RX |
---|
ĂNG TEN |
---|
Dạng kết nối | 1 SC fiber optic, 1 RJ45 jack |
---|
