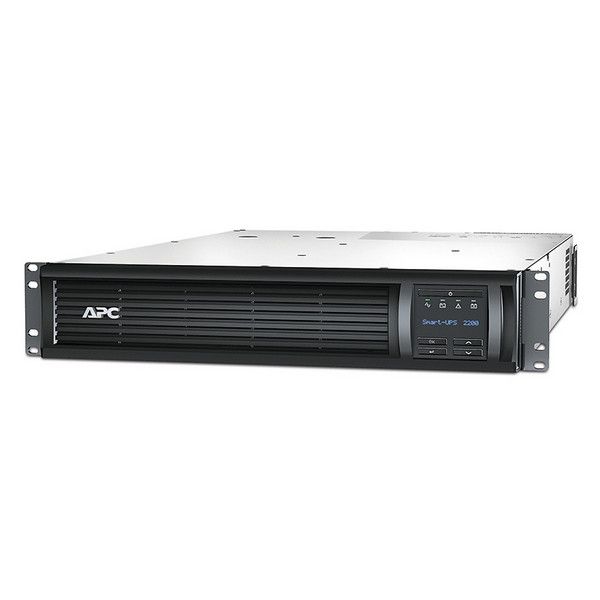

Bộ lưu điện UPS APC SMT2200RMI2U

Thương hiệu: APC Mã sản phẩm: SMT2200RMI2U
So sánh
Liên hệ

Bộ lưu điện UPS APC SMT2200RMI2U LIÊN HỆ TƯ VẤN SẢN PHẨM

MUA THEO DỰ ÁNLiên hệ: 0983.600.878

Hotline 24/7: 0983 600 878 (7:30 - 22:00)

  • <strong>VẬN CHUYỂN, GIAO HÀNG</strong> </br>  - Bán hàng toàn quốc </br> - Miễn phí vận chuyển, giao hàng trong nội thành Hà Nội <br>  - Các địa phương khác tính phí theo đơn vị vận chuyển
    VẬN CHUYỂN, GIAO HÀNG
    - Bán hàng toàn quốc
    - Miễn phí vận chuyển, giao hàng trong nội thành Hà Nội
    - Các địa phương khác tính phí theo đơn vị vận chuyển
  • <strong>CAM KẾT SẢN PHẨM</strong> </br> - Sản phẩm chính hãng mới 100% </br> - Cung cấp đầy đủ giấy chứng nhận xuất xứ (CO) </br> - Cung cấp đầy đủ giấy chứng nhận chất lượng (CQ)
    CAM KẾT SẢN PHẨM
    - Sản phẩm chính hãng mới 100%
    - Cung cấp đầy đủ giấy chứng nhận xuất xứ (CO)
    - Cung cấp đầy đủ giấy chứng nhận chất lượng (CQ)
  • <strong>GIÁ THÀNH SẢN PHẨM</strong> </br> - 100% giá tốt nhất, rất cạnh tranh trên thị trường </br> - Có hỗ trợ giá tốt cho các dự án, công trình, hạng mục</br> - Liên hệ ngay nhận giá tốt nhất
    GIÁ THÀNH SẢN PHẨM
    - 100% giá tốt nhất, rất cạnh tranh trên thị trường
    - Có hỗ trợ giá tốt cho các dự án, công trình, hạng mục
    - Liên hệ ngay nhận giá tốt nhất
  • <strong>DỊCH VỤ HẬU MÃI</strong> </br> - Tư vấn Miễn phí sử dụng sản phẩm</br> - Hướng dẫn vận hành miễn phí, tận tình </br> - Bảo hành nhanh gọn chính hãng
    DỊCH VỤ HẬU MÃI
    - Tư vấn Miễn phí sử dụng sản phẩm
    - Hướng dẫn vận hành miễn phí, tận tình
    - Bảo hành nhanh gọn chính hãng

ĐẶC ĐIỂM NỔI BẬT

Bộ lưu điện UPS APC SMT2200RMI2U: APC Smart-UPS 2200VA LCD RM 2U 230V. APC Smart-UPS,1980 Watts /2200 VA,Input 230V /Output 230V, Interface Port USB, Rack Height 2 U. Typical Backup Time at Full Load 5 minutes (1980 Watts)

Thông số kĩ thuật:

Output

Output Power Capacity

1980 Watts / 2200 VA

Max Configurable Power

1980 Watts / 2200 VA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform Type

Sine wave

Output Connections

(8) IEC 320 C13
(1) IEC 320 C19
(3) IEC Jumpers

Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

British BS1363A
IEC-320 C20
Schuko CEE 7/EU1-16P

Cord Length

2 meters

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Other Input Voltages

220, 240

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

Replacement Battery

RBC43

RBC™ Quantity

1

Runtime Graph

Communications & Management

Interface Port(s)

USB

Available SmartSlot™ Interface Quantity

1

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

Surge energy rating

375 Joules

Physical

Maximum Height

86.00 mm

Maximum Width

480.00 mm

Maximum Depth

683.00 mm

Rack Height

2U

Net Weight

42.31 KG

Shipping Weight

49.73 KG

Shipping Height

254.00 mm

Shipping Width

600.00 mm

Shipping Depth

980.00 mm

Units per Pallet

8.00

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

55.00 dBA

Online Thermal Dissipation

215.00 BTU/hr

Conformance

Regulatory Approvals

C-tick, CE, EN 60950, EN/IEC 62040-1-1, EN/IEC 62040-2, GOST, GS Mark, IRAM, VDE, WEEE

Standard Warranty

3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

Bộ lưu điện UPS APC SMT2200RMI2U

SMT2200RMI2U Features

StruxureWare Central compatible

Enables centralized management via StruxureWare Central.

High online efficiency

Reduces utlility costs, generates less heat.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Sequenced network shutdown and reboot

Customize network shutdown and reboot sequence of connected servers and UPSs.

Cold-start capable

Provides temporary battery power when the utility power is out.

SmartSlot

Customize UPS capabilities with management cards.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.





Smart-UPS Features & Benefits

Availability

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Manageability

Network manageable

Provides remote power management of the UPS over the network.

Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators

Quickly understand unit and power status with visual indicators.

Serial connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers

Enables a quick recovery from overload events.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Adaptability

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
