* Giới thiệu chung về server HP ProLiant DL380 G7 E5649:
Product Description

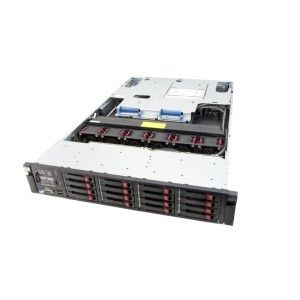

HP ProLiant DL380 G7 - Xeon E5649 2.53 GHz - 12 GB - 0 GB
Type
Server - rack-mountable
Height (Rack Units)
2U
Server Scalability
2-way
Processor
1 x Intel Xeon E5649 / 2.53 GHz ( 2.93 GHz ) ( 6-core )
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology
Cache Memory
12 MB L3 Cache
Cache Per Processor
12 MB
RAM
12 GB (installed) / 288 GB (max) - DDR3 SDRAM - 1333 MHz - PC3-10600
Storage Controller
RAID ( SATA 3Gb/s / SAS 6Gb/s ) - PCI Express 2.0 x4 ( Smart Array P410i with 512MB BBWC )
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Optical Storage
DVD-RW
Graphics Controller
ATI ES1000
Video Memory
64 MB
Networking
GigE
Power
AC 120/230 V ( 50/60 Hz )
Power Redundancy
Optional
Dimensions (WxDxH)
44.6 cm x 69.2 cm x 8.6 cm
Weight
21.5 kg
Manufacturer Warranty
3 years warranty - on-site
- Thông số chi tiết server HP ProLiant DL380 G7 E5649:
General
Type
Server
Recommended Use
Small business, corporate business
Product Form Factor
Rack-mountable - 2U
Server Scalability
2-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
8
Processor / Chipset
CPU
Intel Xeon E5649 / 2.53 GHz
Max Turbo Speed
2.93 GHz
Number of Cores
6-core
64-bit Computing
Yes
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology
Chipset Type
Intel 5520
Cache Memory
Installed Size
L3 Cache - 12 MB
Cache Per Processor
12 MB
RAM
Installed Size
12 GB / 288 GB (max)
Technology
DDR3 SDRAM
Memory Speed
1333 MHz
Memory Specification Compliance
PC3-10600
Form Factor
DIMM 240-pin
Features
Registered
Configuration Features
3 x 4 GB
RAM Supported
PC3-8500 - 384 GB - registered , PC3-10600 - 288 GB - registered , PC3-10600 - 48 GB - unbuffered
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID - integrated - PCI Express 2.0 x4
Controller Interface Type
SATA 3Gb/s / SAS 6Gb/s
Storage Controller Name
Smart Array P410i with 512MB BBWC
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Buffer Size
512 MB
Optical Storage
Type
DVD-RW - SATA
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ATI ES1000
Video Memory
64 MB
Video Interfaces
VGA
Networking
Type
Integrated
Interface (Bus) Type
PCI Express x4
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
2 x HP NC382i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 3
Features
Wake on LAN (WoL), ACPI support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
Expansion / Connectivity
Bays
1 (total) / 0 (free) x external 5.25" Slim Line , 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 2.0 x16 - full-length, full-height ( x8 mode ) , 2 (total) / 2 (free) x PCIe 2.0 x8 - half-length, full-height ( x4 mode ) , 18 (total) / 15 (free) x DIMM 240-pin , 2 (total) / 1 (free) x CPU , 1 (total) / 1 (free) x SD card
Interfaces
1 x PS/2 keyboard , 1 x PS/2 mouse , 1 x serial , 2 x VGA ( 1 front, 1 rear ) , 4 x USB ( 2 front, 2 rear ) , 4 x LAN (Gigabit Ethernet) , 1 x HP iLO
Miscellaneous
Features
Administrator password, power-on password, keyboard password, serial port I/O control, quick lock
Compliant Standards
ACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438
Power
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Nominal Voltage
AC 120/230 V ( 50/60 Hz )
Power Provided
460 Watt
Operating System / Software
OS Certified
SuSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width
44.6 cm
Depth
69.2 cm
Height
8.6 cm
Weight
21.5 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% (non-condensing)
