* Giới thiệu chung về router Cisco C3925E-VSEC-SRE/K9:

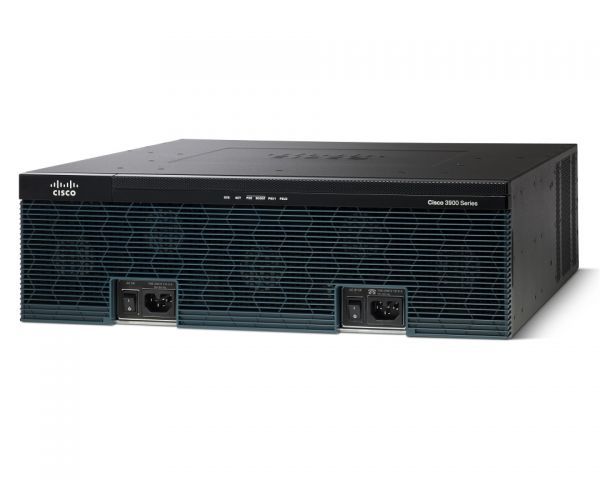

- Router Cisco C3925E-VSEC-SRE/K9
C3925E-VSEC-SRE/K9 Overview
Cisco 3925E Integrated Services Routers (ISR) deliver highly secure data, voice, video, and application services to large branch offices.
Cisco 3925E features include:
Modular Services Performance Engine (SPE) 200 for even higher performance as WAN environments evolve
- 4 integrated 10/100/1000 Ethernet ports with 2 SFP ports
- 2 service module slots
- 3 Enhanced High-Speed WAN Interface Card (EHWIC) slots
- 3 onboard digital signal processor (DSP) slots
- Power Router Cisco C3925E-VSEC-SRE/K9
- Dual integrated power supplies
- Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE)
- A universal IOS image helps you deploy new IOS services quickly
- Security Router Cisco C3925E-VSEC-SRE/K9
- Embedded hardware-accelerated VPN encryption for secure collaboration
- Integrated threat control using Cisco IOS Firewall, Zone-Based Firewall, IPS, and Content Filtering
- Identity management using authentication, authorization, and accounting (AAA) and public key infrastructure
- Unified Communications Router Cisco C3925E-VSEC-SRE/K9
- High-density packet voice DSP module, optimized for voice and video support
- Standards-certified VoiceXML browser services
- Cisco Unified Border Element capabilities for up to 2000 sessions
- Support for Cisco Unity Express voicemail, Cisco Communications Manager Express, and Survivable Remote Site Telephony
- Thông số kĩ thuật router Cisco C3925E-VSEC-SRE/K9:
C3925E-VSEC-SRE/K9 Data Sheet | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C3925E-VSEC-SRE/K9 |
Product Type | Router |
Form Factor | Desktop - modular - 3U |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Capacity | Cisco Unified Communications Manager Express sessions : 400 |
Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
Remote Management Protocol | SNMP, RMON |
Encryption Algorithm | SSL |
Features | Firewall protection, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
DRAM Memory | 1 GB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Hard Drive | 1 TB |
LED Status Lights Indicators | Link activity, power |
Communications | |
Type | Voice / fax module |
Digital Ports Qty | 64 |
Protocols & Specifications | ITU G.168 |
IP Telephony | |
Voice Codecs | G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
Connectivity Slots | |
Router Interfaces | WAN : 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Expansion Slot(s) | 3 (total) / 3 (free) x EHWIC |
Power Supply | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Dimensions / Weight / Miscellaneous | |
Approximate Width | 18.7 in |
Depth | 17.2 in |
Height | 5.2 in |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, NEBS |
System software | |
Software Included | Cisco IOS Unified Communications, Cisco IOS Security |
