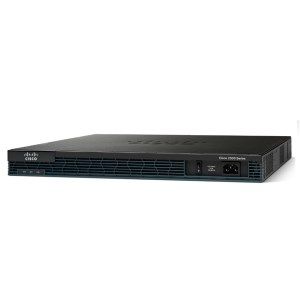

Router Cisco C2901-VSEC/K9
C2901-VSEC/K9 Overview
Cisco 2901 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices. Key features include:
- 2 integrated 10/100/1000 Ethernet ports
- 4 enhanced high-speed WAN interface card slots
- 2 onboard digital signal processor (DSP) slots
- 1 onboard Internal Service Module for application services
- Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
Security
- Embedded hardware-accelerated VPN encryption for secure collaborative VPN communications
- Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
- Identity management that uses authentication, authorization, and accounting (AAA) and public key infrastructure
Voice
- High-density-packet voice DSP module, optimized for voice and video
- Standards-certified VoiceXML browser services
- Cisco Unified Border Element capabilities
- Cisco Unity Express voicemail support
- Support for Cisco Communications Manager Express and Survivable Remote Site Telephony
Cisco router security bundles support the delivery of security features such as Cisco IOS software-based intrusion prevention systems (IPSs), firewall, URL filtering, VPN, and infrastructure security services over numerous WAN access technologies, offering the highest levels of performance, security, scalability, and availability to meet today's growing business requirements.
C2901-VSEC/K9 data sheet | |
---|---|
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | C2901-VSEC/K9 |
Product Type | Router |
Form Factor | External - modular - 1U |
Dimensions (WxDxH) | 43.9 cm x 43.8 cm x 4.5 cm |
Weight | 6.1 kg |
DRAM Memory | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec |
Remote Management Protocol | SNMP, RMON |
Digital Ports Qty | 16 |
Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN) |
Compliant Standards | IEEE 802.1ah, IEEE 802.1ag |
Power | AC 120/230 V ( 50/60 Hz ) |
