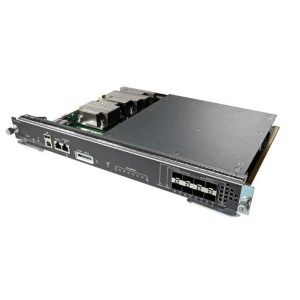

Module Switch Cisco WS-X45-SUP8-E

Thương hiệu: Cisco Mã sản phẩm: WS-X45-SUP8-E
So sánh
Liên hệ

Module Switch Cisco WS-X45-SUP8-E LIÊN HỆ TƯ VẤN SẢN PHẨM

MUA THEO DỰ ÁNLiên hệ: 0983.600.878

Hotline 24/7: 0983 600 878 (7:30 - 22:00)

  • <strong>VẬN CHUYỂN, GIAO HÀNG</strong> </br> - Bán hàng toàn quốc </br> - Miễn phí vận chuyển, giao hàng trong nội thành Hà Nội <br> - Các địa phương khác tính phí theo đơn vị vận chuyển
    VẬN CHUYỂN, GIAO HÀNG
    - Bán hàng toàn quốc
    - Miễn phí vận chuyển, giao hàng trong nội thành Hà Nội
    - Các địa phương khác tính phí theo đơn vị vận chuyển
  • <strong>CAM KẾT SẢN PHẨM</strong> </br> - Sản phẩm chính hãng mới 100% </br> - Cung cấp đầy đủ giấy chứng nhận xuất xứ (CO) </br> - Cung cấp đầy đủ giấy chứng nhận chất lượng (CQ)
    CAM KẾT SẢN PHẨM
    - Sản phẩm chính hãng mới 100%
    - Cung cấp đầy đủ giấy chứng nhận xuất xứ (CO)
    - Cung cấp đầy đủ giấy chứng nhận chất lượng (CQ)
  • <strong>GIÁ THÀNH SẢN PHẨM</strong> </br> - 100% giá tốt nhất, rất cạnh tranh trên thị trường </br> - Có hỗ trợ giá tốt cho các dự án, công trình, hạng mục</br> - Liên hệ ngay nhận giá tốt nhất
    GIÁ THÀNH SẢN PHẨM
    - 100% giá tốt nhất, rất cạnh tranh trên thị trường
    - Có hỗ trợ giá tốt cho các dự án, công trình, hạng mục
    - Liên hệ ngay nhận giá tốt nhất
  • <strong>DỊCH VỤ HẬU MÃI</strong> </br> - Tư vấn Miễn phí sử dụng sản phẩm</br> - Hướng dẫn vận hành miễn phí, tận tình </br> - Bảo hành nhanh gọn chính hãng
    DỊCH VỤ HẬU MÃI
    - Tư vấn Miễn phí sử dụng sản phẩm
    - Hướng dẫn vận hành miễn phí, tận tình
    - Bảo hành nhanh gọn chính hãng

ĐẶC ĐIỂM NỔI BẬT

* Giới thiệu chung về Module Switch Cisco WS-X45-SUP8-E:

WS-X45-SUP8-E

- The new Cisco Catalyst 4500E Supervisor 8-E helps to enable the Cisco Unified Access solution on the world's most widely deployed modular access switch—Cisco Catalyst 4500E. It brings the best of wired and wireless technologies together while preserving investment on existing wired infrastructure. It supports full wireless LAN controller functionality and common features across wired and wireless networks.

Industry-Leading Performance:

  • Up to 928 Gbps wired switching capacity; nonblocking 48 Gbps per slot
  • Eight nonblocking 10 GE uplinks with Field Programmable Gate Array (FPGA) devices to support next-generation protocols
  • Support for Universal Power over Ethernet (UPOE) (60 W) and PoE Plus (30 W) capabilities on all line-card slots
  • Quad CPU cores at 2.2 GHz, which offer improved control plane processing compared to the Cisco Catalyst 4500 Supervisor 7-E

Converged Wired and Wireless Access:

  • Built-in wireless controller with single software image for wired and wireless infrastructure
  • Support for up to 20 Gbps wireless throughput, 50 access points, and 2000 wireless clients on a single system
  • Support for 250 access points and 4000 clients for a multi-switch controller-less deployment
  • Network-wide application visibility and control, and consistent QoS and security, on both wired and wireless networks
  • Extended Nonstop Forwarding/Stateful Switchover (NSF/SSO) to wireless traffic for critical business continuity

Distributed Intelligent Services:

  • Flexible NetFlow and Wireshark on all ports; wireless attributes included
  • Medianet capabilities included to simplify video QoS, monitoring, and security over a wireless and wired network
  • Maximum resiliency with redundant components, NSF/SSO, In-Service Software Upgrade (ISSU) support, and Virtual Switching System (VSS)
  • Energy Efficient Ethernet (EEE) along with Cisco EnergyWise technology to manage the network, PoE+, and PCs

Foundation for Cisco Open Network Environment

- The center of Supervisor 8-E is the new Unified Access Data Plan application-specific integrated circuit (ASIC). You can program this ASIC for next-generation features and intelligence to help protect your investment. You also get converged APIs across wired and wireless, which provides a foundation for software-defined networking (SDN) support and the Cisco One Platform Kit (OnePK) toolkit.

- Thông số chi tiết Module Switch Cisco WS-X45-SUP8-E:

Model info:

WS-X45-SUP8-E or WS-X45-SUP8-E/2



Product Description

Catalyst 4500 E-Series Supervisor 8-E



Devide Tyde

Control Processor



Ports

8 * 10G  SFP+  or 8 * 1G SFP



Wireless  Access points

● 50 Aps with 2000 wireless clinets (single 4500E system)
● 250 Aps with 4000 wireless clinets (multiple 4500E systems)



Wireless bandwidth

20G



Console ports

10/100/1000 RJ-45



Centralized switching capacity

925 Gbps



Per-slot switching capacity

48 Gbps



FNF (Flexible NetFlow)  entries

128000



Forn Factor

Plug-in Module



CPU

Quad core; 2.0 GHz



SDRAM

4 GB



NVRAM

2 GB



Throughput

●  250 Mpps for IPv4
●  125 Mpps for IPv6



Routing entries

●  IPV4: 256,000
●  IPV6: 128,000
●  Multicast: 32,000



Security and QoS hardware entries

128,000



DHCP snooping entries

12,000





ARP Entries

47,000




Sping Tree Protocol Instances

10,000




Slot assignment

●Catalyst 4503-E: Slot 1
●Catalyst 4506-E: Slot 1
●Catalyst 4507R+E: Slot 3 or 4
●Catalyst 4507R-E: Slot 3 or 4
●Catalyst 4510R+E: Slot 5 or 6
●Catalyst 4510R-E: Slot 5 or 6



Bandwidth per Slot for different Chassis

●Catalyst 4503-E: 48 Gbps / slot
●Catalyst 4506-E: 48 Gbps / slot
●Catalyst 4507R+E: 48 Gbps / slot
●Catalyst 4507R-E: 24 Gbps / slot
●Catalyst 4510R+E: 48 Gbps / slot
●Catalyst 4510R-E: 24 Gbps / slot



Compliant Standards

● Ethernet: IEEE 802.3
● 10 Gigabit Ethernet: IEEE 802.3ae
● IEEE 802.1D Spanning Tree Protocol
● IEEE 802.1w Rapid Reconfiguration of Spanning Tree
● IEEE 802.1s Multiple VLAN Instances of Spanning Tree

● IEEE 802.3ad LACP
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1X User Authentication
● RMON I and II standards

Advanced Security

• TACACS+ and RADIUS, which enable centralized control of the switch and restrict unauthorized users from altering the configuration
• Standard and extended ACLs on all ports
• 802.1x user authentication (with port security)
• 802.1x with VLAN assignment, voice VLAN
• Router ACLs (RACLs) on all ports (no performance penalty)
• VLAN ACLs (VACLs)
• Port ACLs (PACLs)
• Private VLANs (PVLANs) on access and trunk ports
• DHCP Snooping and Option 82 insertion
• Port Security

• Sticky Port Security on Voice VLAN
• SSHv1 and v2
• Unicast Port Flood Blocking
• DAI
• IP Source Guard
• VLAN Management Policy Server (VMPS) client
• Cisco NAC Layer 2 802.1X
• Cisco NAC LAN Port IP
• 802.1X Inaccessible Authentication Bypass
• Voice VLAN Sticky Port Security
• SCP
• uRPF Strict Mode (in hardware)

System software / license



System software

Cisco IOS XE Software with ability to host third-party applications



EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9



Software licenses

● C4500E-LB:LAN BASE software license
● C4500E-IPB:IP BASE software license
● L-C4500E-LB-IP:LAN BASE to IP BASE license
● L-C4500E-IP-ES:IP BASE to Enterprise Services license
● L-C4500E-LB-ES:LAN BASE to Enterprise Services license
● C4500E-LIC=:Base product ID for paper delivered software upgrade licenses



SD/USB

● SD-X45-2GB-E:  2 GB SD Memory Card for Supervisor 8-E
● USB-X45-4GB-E: 4 GB USB device for Supervisor 8-E (Future Roadmap)



Supported Cisco Catalyst 4500E Series Line Cards and Modules

● WS-X4748-UPOE+E: Cisco Catalyst 4500E Series, 48-port 802.3af PoE, 802.3at PoEP, and UPOE 10/100/1000
● WS-X4748-RJ45-E: Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45)
● WS-X4748-RJ45V+E: Cisco Catalyst 4500E Series, 48-port PoE 802.3at 10/100/1000 (RJ-45)
● WS-X4712-SFP+E: Cisco Catalyst 4500E Series, 12-port 10 Gigabit Ethernet (SFP+)
● WS-X4648-RJ45V-E: Cisco Catalyst 4500E Series, 48-port 802.3af PoE 10/100/1000 (RJ-45)
● WS-X4648-RJ45V+E: Cisco Catalyst 4500E Series, 48-port Premium PoE 10/100/1000 (RJ-45)

● WS-X4648-RJ45-E: Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45)
● WS-X4640-CSFP-E: Cisco catalyst 4500E Series, 40- and 80-port SFP/CSFP Gigabit Ethernet line card
● WS-X4606-X2-E: Cisco Catalyst 4500E Series, 6-port 10 Gigabit Ethernet (X2)
● WS-X4624-SFP-E: Cisco Catalyst 4500E Series, 24-port Gigabit Ethernet (SFP)
● WS-X4612-SFP-E: Cisco Catalyst 4500E Series 12-port Gigabit Ethernet (SFP)
● CVR-X2-SFP: Twin gigabit converter module

Supported Cisco Catalyst 4500 Classic Line Cards and Modules

● WS-X4148-FX-MT: Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-FX multimode fiber (MMF)
● WS-X4148-RJ: Cisco Catalyst 4500 10/100 Module, 48 ports (RJ-45)
● WS-X4248-RJ45V: Cisco Catalyst 4500 PoE 802.3af 10/100, 48 ports (RJ-45)
● WS-X4248-FE-SFP: Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-X (SFP)
● WS-X4306-GB: Cisco Catalyst 4500 Gigabit Ethernet Module, 6 ports (GBIC)

● WS-X4448-GB-SFP: Cisco Catalyst 4500 Gigabit Ethernet Module, 48 ports 1000BASE-X (optional SFPs)
● WS-X4548-GB-RJ45: Cisco Catalyst 4500 Enhanced 48-Port 10/100/1000 Module (RJ-45)
● WS-X4548-GB-RJ45V: Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 48 ports (RJ-45)
● WS-X4548-RJ45V+: Catalyst 4500 PoE+ Ready 10/100/1000, 48 ports (RJ-45)

Environmental Conditions
