Giới thiệu chung về Card Router Cisco HWIC-1GE-SFP:

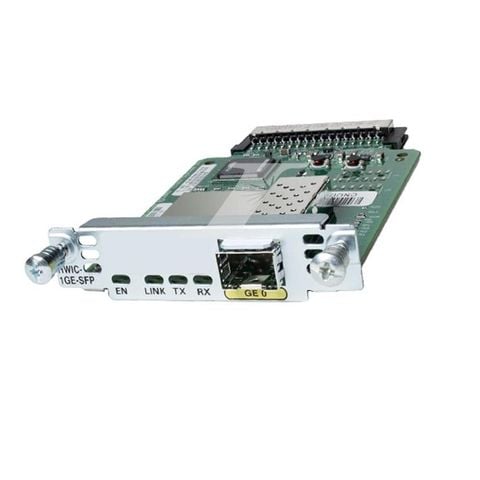

HWIC-1GE-SFP
- The Cisco Gigabit Ethernet High-Speed WAN Interface Card (HWIC) brings Gigabit Ethernet connectivity to Cisco Integrated Services Routers routers to accelerate applications such as Metro Ethernet access, inter-VLAN routing, and high-speed connectivity to LAN switches.
- The single-port Cisco Gigabit Ethernet HWIC provides Gigabit Ethernet optical and copper connectivity in a compact form factor for all Cisco Integrated Service Routers (ISRs).
- The Gigabit Ethernet HWIC enables branch offices to cost-effectively use high-speed uplinks in numerous environments (Figure 1). The enhanced performance of Gigabit Ethernet in Cisco ISRs to enable new applications and services, as well as provide greater capacity for existing inter-VLAN routing and bridging capabilities. Additionally, branch offices can now connect to metropolitan-area networks (MANs).
- Note: The HWIC provides Gigabit Ethernet connectivity but will not support line rate since the throughput is limited by the platforms.
For flexibility, the HWIC includes one Small Form-Factor Pluggable (SFP) slot to carry any Cisco copper or optical SFP, allowing customers to use different SFPs for special distance, cost, existing infrastructure, and future expansion requirements.
Cisco IOS Software provides enhanced capabilities such as quality of service (QoS), Multiprotocol Label Switching (MPLS), IP Security (IPSec), and Layer 3 VPNs. Since this is a true routed port card, the user can configure an IP address directly on the HWIC-1GE-SFP interface and does not have to configure the port for VLAN trunking as is done in Switched Virtual Interface (SVI) configurations.
- Thông số chi tiết Card Router Cisco HWIC-1GE-SFP:
General Information | |
Manufacturer: | Cisco |
Product ID: | HWIC-1GE-SFP |
Product Description: | Cisco GigE High Speed WIC With One SFP Slot |
Product Type: | HWIC |
Marketing Information | |
The single-port Cisco Gigabit Ethernet HWIC provides Gigabit Ethernet optical and copper connectivity in a compact form factor for all Cisco 2800 and 3800 series integrated services routers, except the 2801. As an updated and enhanced version of the current WIC for the Cisco 2600 and 3700 chassis, the HWIC offers greater bandwidth and higher port density than the current WIC. The HWIC supports both Power over Ethernet (PoE) and inline power based on Cisco Systems technology, and is available in single-wide and double-wide form factors.The Gigabit Ethernet HWIC enables branch offices to cost-effectively use high-speed uplinks in numerous environments. The enhanced performance of Gigabit Ethernet in Cisco 2800 and 3800 series routers allows customers to enable new applications and services, as well as provide greater capacity for existing inter-VLAN routing and bridging capabilities. Additionally, branch offices can now connect to metropolitan-area networks (MANs). The HWIC provides Gigabit Ethernet connectivity but will not support line rate since the throughput is limited by the platforms. | |
Technical Information | |
Technical Information | Wide Area Network |
Media & Performance | |
Data Transfer Rate: | 1 Gbps Gigabit Ethernet |
I/O Expansions | |
Expansion Slots: | 1 x SFP (mini-GBIC) |
Daughter Cards: | No |
Management & Protocols | |
Management: | · CiscoWorks · Simple Network Management Protocol (SNMP) support · Remote Monitoring (RMON) support · Cisco NetFlow accounting · VLAN |
Protocols: | VRRP, HSRP, RMON, SNMP, MPLS, IPSec, IGMP, CGMP, GLBP |
Security Features: | IPSec |
Environmental Conditions | |
Temperature: | 32°F (0°C) to 104°F (40°C) Operating -4°F (-20°C) to 149°F (65°C) Storage |
Humidity: | 10% to 90% Non-condensing Relative Humidity |
Physical Characteristics | |
Dimensions: | 0.8" Height x 3.1" Width x 4.8" Depth |
Miscellaneous | |
Additional Information: | · Jumbo frame support up to 9576 bytes · Hot insertion and removal for SFPs on all platforms · Media or SFP type display through a command-line interface (CLI) · Gigabit EtherChannel for link redundancy · Layer 3 VPN support |
System Requirements: | Minimum IOS Software Requirement: Cisco IOS Software Release 12.3(8)T4 |
Certifications & Standards: | · IEEE 802.3 with 802.2 SAP · IEEE 802.3 with 802.2 and SNAP · IEEE 802.1p · IEEE 802.1q VLAN · Gigabit Ethernet IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab Agency Approvals: · UL 1950 (United States) · CSA-C22.2 #950 (Canada) · EN60950 (Europe) · TUV GS (Germany) · IEC 950 (International) Immunity: · EN300386 · EN55024/CISPR24 · EN50082-1 Emissions: · FCC Part 15 Class A · ICES-003 Class A · EN55022 Class A · CISPR22 Class A · AS/NZS 3548 Class A · VCCI Class A · EN 300386 · EN61000-3-3 · EN61000-3-2 |
