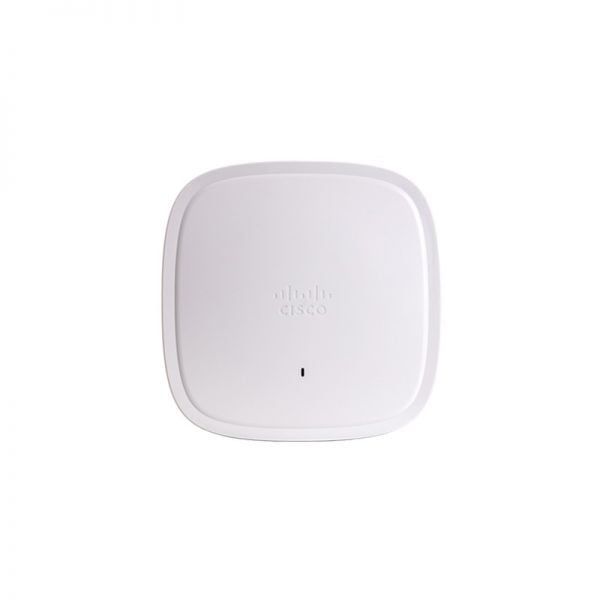

Cisco Catalyst 9115AXE Access Point C9115AXE-H: Indoor, challenging environments, with external antennas
✓ Mã sản phẩm: C9115AXE-H
✓ Tình trạng: Còn Hàng
Bộ phát wifi C9115AXE-H cung cấp một mạng không dây với khả năng phục hồi và kết nối vượt trội, tích hợp bảo mật với tính năng phân loại và ngăn chặn tiên tiến. C9115AXE-H Access Point với các khả năng và cải tiến Wi-Fi 6 (8012.11ax) nâng cao hiệu suất, bảo mật và phân tích RF, cho phép số hóa đầu cuối và giúp đẩy nhanh việc triển khai các dịch vụ kinh doanh bằng cách cung cấp ngoài Wi-Fi.
Điểm truy cập C9115AXE-H Cisco Catalyst 9115, với Cisco DNA , là sản phẩm cấp doanh nghiệp sẽ đáp ứng nhu cầu hiện tại và tương lai của bạn.
Thông số kỹ thuật
Item | Specification |
Supported wireless LAN controllers | - Cisco Catalyst 9800 Series Wireless Controllers - Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller - Cisco Mobility Express |
802.11n version 2.0 (and related) capabilities | - 4x4 MIMO with four spatial streams - Maximal Ratio Combining (MRC) - 802.11n and 802.11a/g beamforming - 20- and 40-MHz channels - PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic Shift Diversity (CSD) support |
802.11ac | - 4x4 downlink MU-MIMO with four spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support |
802.11ax | - 4x4 downlink MU-MIMO with four spatial streams - Uplink/downlink OFDMA - TWT - BSS coloring - MRC - 802.11ax beamforming - 20-, 40-, 80-, and 160-MHz channels - PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) - Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) - 802.11 DFS - CSD support |
Integrated antenna | - 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth - 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
External antenna (sold separately) | - Cisco Catalyst 9115E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) - Cisco offers the industry's broadest selection of delivering optimal coverage for a variety of deployment scenarios |
Interfaces | - 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
Indicators | - Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H) | - Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in., C9115E: 8.0 x 8.0 x 1.7 in. |
Item | Specification |
Weight | Cisco Catalyst 9115E - 2.43 lb (1.1 kg) |
Input power requirements | - 802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE®) - Cisco power injector, AIR-PWRINJ6= - 802.3af PoE - Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off. |
Power draw | 802.3at full feature |
Power source | Power type | 2.4-GHz radio | 5-GHz radio | Link speed | USB | LLDP | Cisco Discovery Protocol |
802.3at | PoE | 4x4 | 4x4 | 2.5G | Y | 20.4W | 20.4W |
802.3af reduced feature |
Power source | Power type | 2.4-GHz radio | 5-GHz radio | Link speed | USB | LLDP | Cisco Discovery Protocol |
802.3af | PoE | 2x2 | 2x2 | 1G | N | 15.4W | 15.4W |
Environmental | - Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
- Nonoperating (storage) altitude test: 25˚C, 15,000
- Operating temperature: -4° to 122°F (-20° to 50°C)
- Operating humidity: 10% to 90% (noncondensing)
Operating altitude test: 40˚C, 9843 ft. |
System memory | - 2048 MB DRAM - 1024 MB flash |
Warranty | Limited lifetime hardware warranty |
